190e Fuel pump relay numbers

[classicmel]

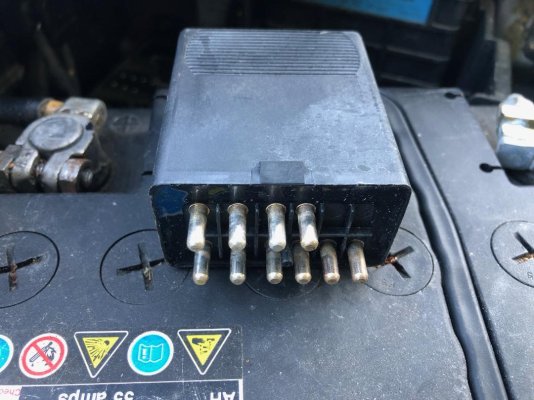

Hi, it seems I need to change my fuel pump relay photo below but the numbers are 0001 545 7805 and also Kickdown.
I've been browsing the web for a while and seen absolutely countless replacements but all the new ones have different numbers and no Kickdown wording, as such I don't think I really wish to go down that route in case they do something drastic to the system. Would anyone know if I have to find the identical numbered part please?


Just to add, I went out and tried to start it one day and it did but then died immediately, that was quite a few weeks ago now, there's a spark and there was fuel in the tronic. I could hear the fuel pump working however, if i remember rightly it was making as much noise as it had been while actuating, I also put a multimeter across the relay and got some reading but it was over my head, I bridged them and i could hear something from the pump.... I also tried my spare OVP. So listening to many folks later, I've managed to change the fuel filter to no avail, but since doing so, no noise from the fuel pump. So, took the wires off the pump and put them on a multimeter and with the ignition on, nothing, bridged the relay connections and then showing 12v. So that must be the relay, but I do think the pump ought to be changed at the same time due to it looking like the original anyhow.



[classicmel]

Can't seem to edit this post but this has been answered elsewhere.



[optimusprime]

So your all fixed then ?



[classicmel]

Hello OP, not entirely, waiting for a replacement to arrive and just hope it starts, I do have the superseded relay numbers though it isn't cheap from Mercedes.



[optimusprime]

Well i wont pay the price unless i cant buy one in good used condition .



[optimusprime]

Min where you buy your pump from ..me and another friend had 2 Bosch fuel pumps each around the same time, and from the same seller .And that failed in under 500 miles .Bosch are not as good as they used to be ,,,,we know ..I am about to replace both my fuel pumps again for the second time , but i dont know what to buy for the best.



[classicmel]

Yes it is a dilemma, I was tempted for the cheap relay because the seller has shown it to be suitable but i'm concerned regards the longevity of such items, you know £25 versus £70 or much more, I was also thinking that even buying a second hand one and that it may fail without notice, trouble is, even though some parts are marked as OE they really aren't and are cheap Chinese knock offs and while some are actually really good- like the brake calipers, I'm so worried when it comes to electronics.



[optimusprime]

I have a good friend on Ebay Tony - Nick phone number is 07936424255.I have most parts from Tony with a very fast delivery ..2 days max



[classicmel]

I have a good friend on Ebay Tony - Nick phone number is 07936424255.I have most parts from Tony with a very fast delivery ..2 days max

I've bought off a couple on there and elsewhere recently but seem to have communication problems leaving me quite anxious.



[Pontoneer]

There is a dedicated 190 forum with some very knowledgeable guys on it

www.Mercedes-190.co.uk



[classicmel]

There is a dedicated 190 forum with some very knowledgeable guys on it

www.Mercedes-190.co.uk

Yes, I get a lot of help there Thank you Pontoneer, though can be quiet and I can be somewhat impatient to get things done, I've had a really terrible time with the car and it's a wonder I can bear the sight of it.



[Pontoneer]

Yep , I’m still a member there , having had three 190s , but not so often now as I don’t currently have one .



[optimusprime]

classicmel As for your coil ,do this check .I cant send attachments in private messages . So here is how to check your coil . That is if your coil is like this one .​



[classicmel]

classicmel As for your coil ,do this check .I cant send attachments in private messages . So here is how to check your coil . That is if your coil is like this one .View attachment 172196​

Thank you Optimus, I had someone on the other forum show me how to test and am currently sourcing another coil



[alabbasi]

Pull the cover off and check the solder connections. I recently took mine apart on my 84 500sl and was able to fix it



[Romeo105]

Can anyone help with part numbers of exhaust sensors for a 500 cl 215?



[optimusprime]

Romeo105 First of you need your vin number to purchase the right sensor ..post your vin number, and i will see if i can sort it .​



[Romeo105]

Hi thank you for the reply my chassis number is WDB2153752A036843 I have found the pre cat once but not the after one



[optimusprime]

Hi thank you for the reply my chassis number is WDB2153752A036843 I have found the pre cat once but not the after one

Try this Mercedes/Smart - Catcar.info



[alabbasi]

Can anyone help with part numbers of exhaust sensors for a 500 cl 215?

It may be more fruitful to create your own own thread instead of posting the question randomly in an unrelated thread.
