2010 e class centre console rotary selector not working

[zakbelle]

Hi, the rotary selector switch for my radio, nav etc is not working, I can select things when clicking the rotary selector but when rotating the selector nothing happens, has anyone come across this before??

Many thanks



[BlackC55]

Yes. Replace the rotary switch.



[zakbelle]

Yes. Replace the rotary switch.

So I have bought the replacement shaft and managed to remove so much of the centre console but the connector that connects the rotary knob cannot easily be removed as it is attached to the side of the console. One YouTube video suggests cutting the cable and resilfmdeeing which I am not keen to do. Anyone else managed to remove this connector without cutting the cable?



[zakbelle]

So I have bought the replacement shaft and managed to remove so much of the centre console but the connector that connects the rotary knob cannot easily be removed as it is attached to the side of the console. One YouTube video suggests cutting the cable and resilfmdeeing which I am not keen to do. Anyone else managed to remove this connector without cutting the cable?

Resoldering*



[mersum1es]

W212 - Problem with rotary COMAND controller | Electronics and Audio

Hi All, My 212 has the column shift and so has the rotary COMAND controller on the centre console. Like this Repair Comand Controller Mercedes GLK Turn Knob Rotary Switch Button Switch | eBay Yesterday the spin function stopped working. I can still select things by clicking the centre of...

forums.mbclub.co.uk



[richard]

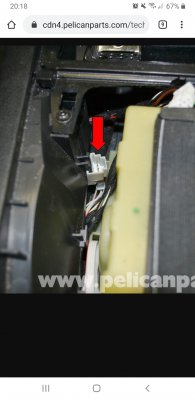

Theres a clip in the black bit that moves to let the white bit slide off (possibly backwards). Look down the middle of the black bit.

Richard
