Electronic issues on sprinter 313cdi 2013, help!

Page may contain affiliate links. Please see terms for details.

Giltedge

New Member
Joined
Sep 14, 2018
Messages
4
Location
Uk
Car
Sprinter 313 cdi

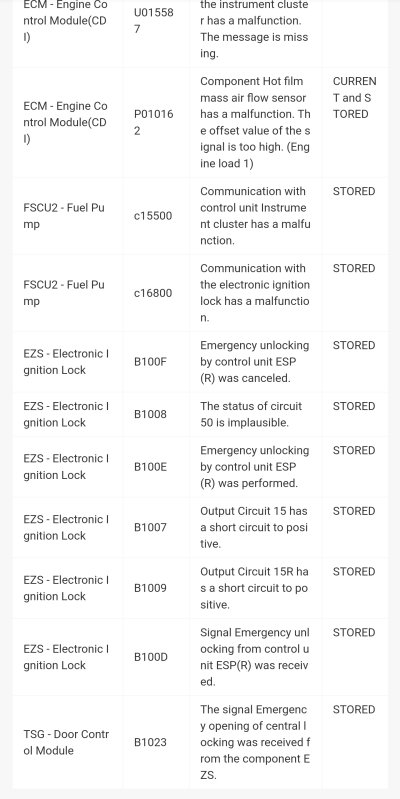

Hi, 1000066719.jpg1000066721.jpg1000066723.jpg1000066725.jpg1000066727.jpg Hi, I bought a Todondiagnostics scanner after I was charged £1880 to clean the dpf, I've since had a few issues with my sprinter 313cdi 2013, I've attached a report from the scanner, the van key won't turn, it eventually does but can wait 15 minutes, the ESP light keeps coming on in yellow and I've had the brake force distribution light coming on in red, I changed the brake light switch and it seems to have helped. I'm not sure if anyone would know what this diagnostic report means? I wondered if it might be the relays as it seems like everything that can go wrong has gone wrong? Any help would be greatly appreciated. Thanks.

The first thing that I would do is check the battery voltage (might be available on your scanner).
Then I would check all fuses.

The first thing that I would do is check the battery voltage (might be available on your scanner).
Then I would check all fuses.
Hi Ted thank you very much for your reply it's much appreciated, I'll do that in the morning, sure the battery voltage was 14.4v but I'll certainly check all the fuses tomorrow, got some new relays coming hopefully they'll be here tomorrow so I'll check fuses when I change the relays. Thank you!!!

  • Like
Reactions: Ted
The first thing that I would do is check the battery voltage (might be available on your scanner).
Then I would check all fuses.
, checked the battery and fuses, no joy! Today it got worse the whole dashboard Speedo, lights, windows died while I was driving that was a bit worrying, I thought it was the relays but wondering if the control panel has water on it or something, I'm just trying to find out how to take it the relay/fuse panel and make sure there's no water damage, noticed on you tube someone else had that. Well see! Thanks

  • Like
Reactions: Ted
