how to fit brabus d4 chip for v250d ( v class)

[bogrisha]

Hello from Ukraine,
i need to instal brabus d4 box for merc v class v250d. unfortunately my kit doesent consist instruction for instalation (used).
wiring has 3 pair of connectors and 3 cables (green, green/white, black/red).
a have an information that cables without connectors ned to be connected to ecu plug connector.
need any information for that instal.
ps sorry for bad english



[bogrisha]

motor is om651



[Gazwould]

Is this a sensor fooling tuning box or a piggy back ecu ?



[bogrisha]

BRABUS ECO PowerXtra Kit D4 Base V250 Blue TEC and V250 Bluetec 4-matic + 33 kW / 45 hp ; + 70 Nm to 173 kW / 235 hp ; 510 Nm
seems to be external co-ecu



[bogrisha]

i have some update:
green and green/white is engine CAN line
Black/brown is posisive terminal for fuse
connectors are^
1 Turbo presure sensor
2 fuel ramp
3 Intake manifold presure sensor

Ill try to fit it on weekendand test how it goes



[geoffus]

Is this it ?

Article - Overview - Tuning - BRABUS

www.brabus.com



[bogrisha]

Is this it ?

Article - Overview - Tuning - BRABUS

www.brabus.com

yep!



[bogrisha]

but in attachment is other type of engine.



[Rambro]

did you make it work? looking for the same fitting instructions.



[bogrisha]

did you make it work? looking for the same fitting instructions.

hi, all things work. give me your email and i send original fitting manual from brabus



[Rambro]

[email protected]. Tranks !



[Tameroz]

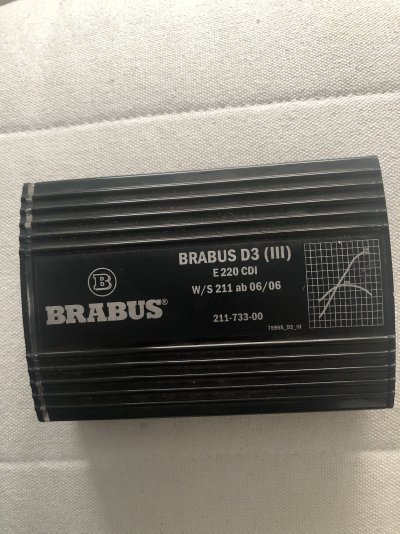

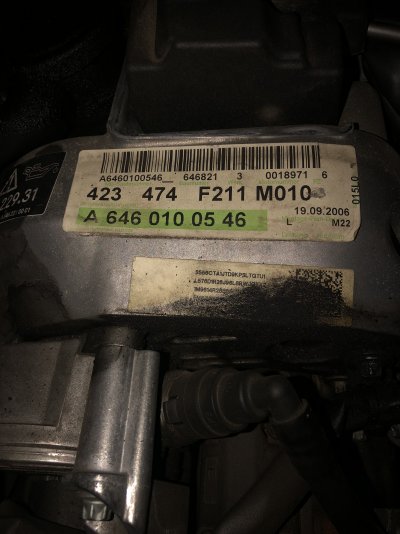

Hallo guys i have eco powerxtra D3(III) E220 CDI need instruction for engine om646.821 who help me.



[shoroop]

Hey, I'm digging up the topic again.
Same issue, just bought a used d4 box without any instructions. Brabus is not willing to cooperate @bogrisha, @Rambro, do you still have the fitting manual and could provide it?
Greets from Germany!



[Michael2805]

Hi, I would also very much appreciate some help in this matter… same situation as @shoroop above. Thanks Michael



[Michael2805]

Hey, I'm digging up the topic again.
Same issue, just bought a used d4 box without any instructions. Brabus is not willing to cooperate @bogrisha, @Rambro, do you still have the fitting manual and could provide it?
Greets from Germany!

Hi I just got instructions manual on how to fit d4 on v250 straight from Brabus if you are still interested… nice day, Michael



[shoroop]

Hi I just got instructions manual on how to fit d4 on v250 straight from Brabus if you are still interested… nice day, Michael

Hi Michael, would be great!
could you send it to [email protected] Thanks a lot!
