I carsoft messages.

[Pedrostar88]

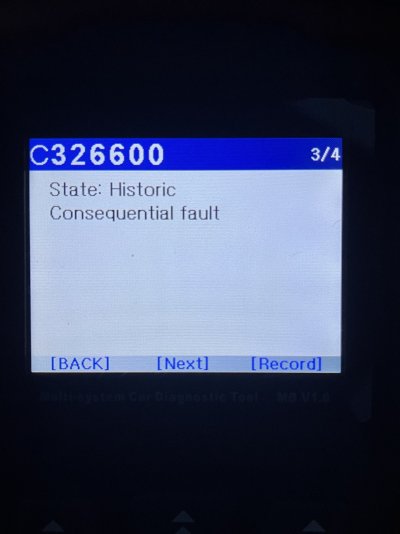

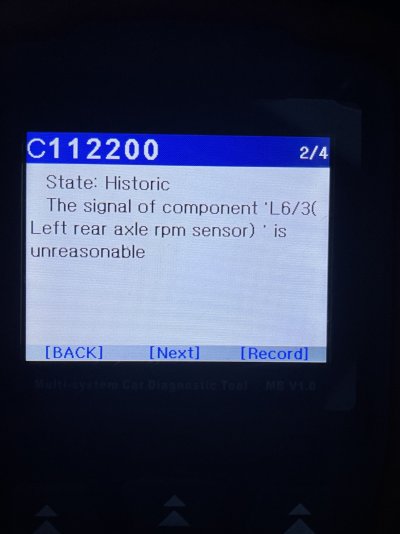

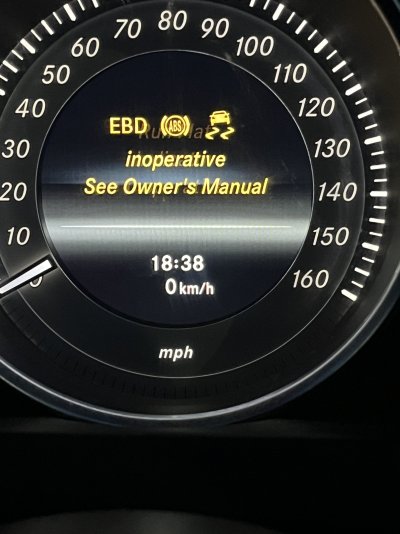

I have an EBD, ABS inoperative see owners manual message. I hooked it up to the iCarsoft and got the attached messages. Does this mean both rear wheel speed sensors need replaced. Many thanks.



[Pedrostar88]

I have an EBD, ABS inoperative see owners manual message. I hooked it up to the iCarsoft and got the attached messages. Does this mean both rear wheel speed sensors need replaced. Many thanks.

Should of added this one too, cheers.



[Trickythemerc]

Consequential fault could be a reluctor ring spooking the sensor with unreasonable speed signals.



[KennyN]

You can check all four corners "dynamically" whilst driving with the iCarsoft , so set it to live data and go for a drive and see what one is giving the wrong feedback data compared to the other three.

K



[Pedrostar88]

Consequential fault could be a reluctor ring spooking the sensor with unreasonable speed signals.

Is reluctor ring a big job? Expensive?



[Pedrostar88]

You can check all four corners "dynamically" whilst driving with the iCarsoft , so set it to live data and go for a drive and see what one is giving the wrong feedback data compared to the other three.

K

Cheers will try that tomorrow.

You can check all four corners "dynamically" whilst driving with the iCarsoft , so set it to live data and go for a drive and see what one is giving the wrong feedback data compared to the other three.

K

is that only with version 2? I only have MB V1.0, cheers



[Supernoodle]

I'm always suspicious if two or more sensors give faults at the same time.

As above test and see if there is something, even if just a connector, that could cause simultaneous failures.



[KennyN]

Cheers will try that tomorrow.

is that only with version 2? I only have MB V1.0, cheers

I have the CR Pro (too many different cars in the household) , and you can check all the sensors at the same time.

K



[Pedrostar88]

Spoke to someone at iCarsoft and they suggested it could be an ABS module or the cables that are faulty.



[JimC007]

I just had the same on my e class. Rear right sensor fault. Replaced the sensor first as not too difficult to do but after clearing the code I got another fault re signal. So impulse ring needed replacement. Lots of suspension has to be undone to access ring on end of driveshaft so I chose to get my friendly local garage to replace which they did. £150. All good but mechanic did say it was not the most enjoyable task. ( that's a polite translation of what he said) Wait for it! Now 3 weeks later, dash lights back on. icarsoft back out and now the left rear sensor is causing the fault. So I will have to go through the process once again. Lucky me. As you say with two faults at the same time it may be something else.



[CatalinHulpus]

Hi I have a message component E1/6e3 iin module E1/6 is faulty but I don’t know we’re is this component. Can someone help me?



[Pedrostar88]

I’ve spoken to a few folk and done some research, is it possible that the issue is the ABS control unit and needs replaced?



[Pedrostar88]

Had car at Mercedes and both rear impulse rings are needing renewed they said. I have bought both genuine parts from eBay and I am going to take it to a local garage to ask for a quote. Anyone got any idea how much I can expect to pay?
