<div class="bbWrapper">I have a 2010 S212 E350 CDI BlueTEC. My engine management light recently lit amber. Around the same time, the transmission started getting a bit clunky/jerky.<br />
<br />
I bought an OBDII reader to use with my phone. It reported the following:<br />
Car Scanner ELM OBD2<br />
DTC report<br />
Selected brand: Mercedes-Benz<br />
<br />
============1==============<br />
P2454<br />
Raw code: 2454<br />
ECU: Engine control unit<br />
Status: Confirmed<br />
OBDII: Diesel particulate filter (DPF) pressure sensor A - circuit low<br />
<br />
============2==============<br />
P2453<br />
Raw code: 2453<br />
ECU: Engine control unit<br />
Status: Pending<br />
OBDII: Diesel particulate filter (DPF) pressure sensor A - circuit malfunction<br />
<br />
============3==============<br />
P11DA(00)<br />
Raw code: 11DA00<br />
ECU: Engine control unit<br />
Status: Test failed, Test failed (current drive cycle), Pending, Confirmed, Test failed since last DTC clear, Warning indicator requested<br />
<br />
============4==============<br />
P1297(00)<br />
Raw code: 129700<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear, Test not completed during this operation cycle<br />
OBDII: Injector High Sides Shorted Together<br />
<br />
============5==============<br />
P14D8(00)<br />
Raw code: 14D800<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear<br />
<br />
============6==============<br />
P118A(00)<br />
Raw code: 118A00<br />
ECU: Engine control unit<br />
Status: Pending, Test failed since last DTC clear, Test not completed during this operation cycle<br />
<br />
============7==============<br />
P11A7(00)<br />
Raw code: 11A700<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear<br />
<br />
============8==============<br />
P11D9(00)<br />
Raw code: 11D900<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear<br />
<br />
============9==============<br />
P11DA(00)<br />
Raw code: 11DA00<br />
ECU: Engine control unit<br />
Status: Test failed, Test failed (current drive cycle), Pending, Confirmed, Test failed since last DTC clear, Warning indicator requested<br />
<br />
============10==============<br />
P131E(00)<br />
Raw code: 131E00<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear<br />
<br />
============11==============<br />
P118D(00)<br />
Raw code: 118D00<br />
ECU: Engine control unit<br />
Status: Pending, Test failed since last DTC clear, Test not completed during this operation cycle<br />
<br />
============12==============<br />
P10BB(00)<br />
Raw code: 10BB00<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear<br />
<br />
============13==============<br />
P1218(00)<br />
Raw code: 121800<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear<br />
OBDII: CID High<br />
<br />
============14==============<br />
P1219(00)<br />
Raw code: 121900<br />
ECU: Engine control unit[Archive (inactive)]<br />
Status: Test failed since last DTC clear<br />
OBDII: CID Low<br />
<br />
A bit of Googling led me to believe that I needed to replace the manifold pressure sensor so I ordered this: <a href="https://www.amazon.co.uk/gp/product/B01LF7Q64A/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1" target="_blank" class="link link--external" rel="nofollow ugc noopener">https://www.amazon.co.uk/gp/product/B01LF7Q64A/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1</a><br />
<br />

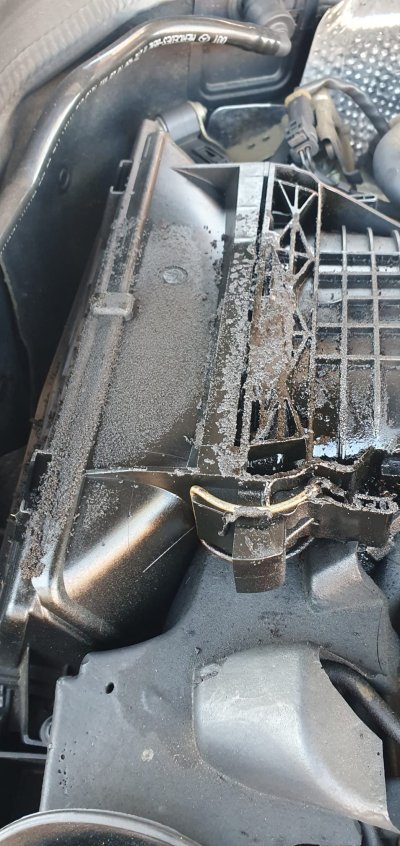

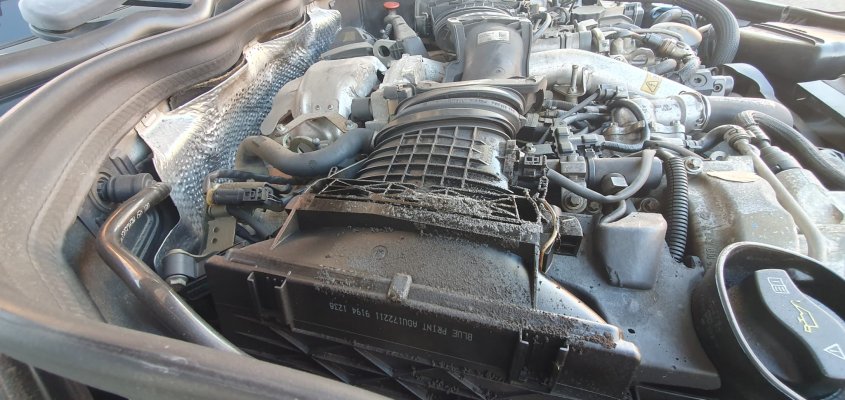

Today I lifted the bonnet to attempt to fit it. On removing the plastic engine cover, I discovered that there appears to be an oil leak per the photos below. Is anyone able to advise me what the source of the leak is?<a href="https://forums.mbclub.co.uk/attachments/whatsapp-image-2022-11-12-at-14-25-06-1-jpeg.133836/"
target="_blank"><img src="https://forums.mbclub.co.uk/data/attachments/107/107443-0f3e739ec6ba56d7a6493941a7aff1d8.jpg?hash=Dz5znsa6Vt"
class="bbImage "
style=""
alt="WhatsApp Image 2022-11-12 at 14.25.06 (1).jpeg"
title="WhatsApp Image 2022-11-12 at 14.25.06 (1).jpeg"
width="846" height="400" loading="lazy" /></a><a href="https://forums.mbclub.co.uk/attachments/whatsapp-image-2022-11-12-at-14-25-06-2-jpeg.133837/"
target="_blank"><img src="https://forums.mbclub.co.uk/data/attachments/107/107444-a15545175acc35b27bacc953e2d54adc.jpg?hash=oVVFF1rMNb"
class="bbImage "
style=""
alt="WhatsApp Image 2022-11-12 at 14.25.06 (2).jpeg"
title="WhatsApp Image 2022-11-12 at 14.25.06 (2).jpeg"
width="845" height="400" loading="lazy" /></a><a href="https://forums.mbclub.co.uk/attachments/whatsapp-image-2022-11-12-at-14-25-06-3-jpeg.133838/"
target="_blank"><img src="https://forums.mbclub.co.uk/data/attachments/107/107445-4a10267b3c759fb36331342e85e83a66.jpg?hash=ShAmezx1n7"
class="bbImage "
style=""
alt="WhatsApp Image 2022-11-12 at 14.25.06 (3).jpeg"
title="WhatsApp Image 2022-11-12 at 14.25.06 (3).jpeg"
width="845" height="400" loading="lazy" /></a><a href="https://forums.mbclub.co.uk/attachments/whatsapp-image-2022-11-12-at-14-25-06-4-jpeg.133839/"
target="_blank"><img src="https://forums.mbclub.co.uk/data/attachments/107/107446-3d3d6d618c76b65ee716f96315731a51.jpg?hash=PT1tYYx2tl"
class="bbImage "
style=""
alt="WhatsApp Image 2022-11-12 at 14.25.06 (4).jpeg"
title="WhatsApp Image 2022-11-12 at 14.25.06 (4).jpeg"
width="846" height="400" loading="lazy" /></a><a href="https://forums.mbclub.co.uk/attachments/whatsapp-image-2022-11-12-at-14-25-06-5-jpeg.133840/"
target="_blank"><img src="https://forums.mbclub.co.uk/data/attachments/107/107447-f2d23440d6832b3715d9372fe7f55276.jpg?hash=8tI0QNaDKz"
class="bbImage "
style=""
alt="WhatsApp Image 2022-11-12 at 14.25.06 (5).jpeg"
title="WhatsApp Image 2022-11-12 at 14.25.06 (5).jpeg"
width="845" height="400" loading="lazy" /></a><a href="https://forums.mbclub.co.uk/attachments/whatsapp-image-2022-11-12-at-14-25-07-1-jpeg.133841/"
target="_blank"><img src="https://forums.mbclub.co.uk/data/attachments/107/107448-0697f25d74566ba8a9c9793cbc31b062.jpg?hash=BpfyXXRWa6"
class="bbImage "
style=""
alt="WhatsApp Image 2022-11-12 at 14.25.07 (1).jpeg"
title="WhatsApp Image 2022-11-12 at 14.25.07 (1).jpeg"
width="846" height="400" loading="lazy" /></a><a href="https://forums.mbclub.co.uk/attachments/whatsapp-image-2022-11-12-at-14-25-07-jpeg.133842/"
target="_blank"><img src="https://forums.mbclub.co.uk/data/attachments/107/107449-6d800721f5c440562504bd4d8c546d7f.jpg?hash=bYAHIfXEQF"
class="bbImage "
style=""
alt="WhatsApp Image 2022-11-12 at 14.25.07.jpeg"
title="WhatsApp Image 2022-11-12 at 14.25.07.jpeg"
width="400" height="846" loading="lazy" /></a></div>
