OM602 lifting point

[Habil]

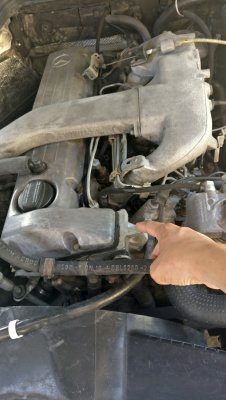

I'm going to change the engine mounts on my OM602, is this the lifting point, where my finger is?



[John N]

l would suggest that yes that is the Lifting Point, but to Replace the Engine Mounts you need to Lever the Engine Left and Right, not Lift it



[Habil]

Lever the engine right and left how? According to Pelicanparts you can do it with a engine lift.

You see my sump is got a crack.



[Habil]

I have changed the engine mounts this morning they were knackered, I used the lifting point to do the left mount and for the right I used the lifting point and also the engine mount arm.

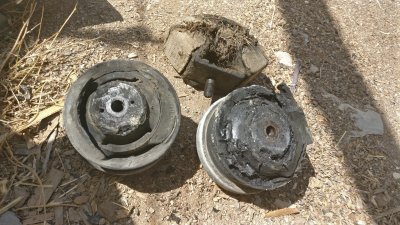

Here are the old mounts,I did the transmission also.
