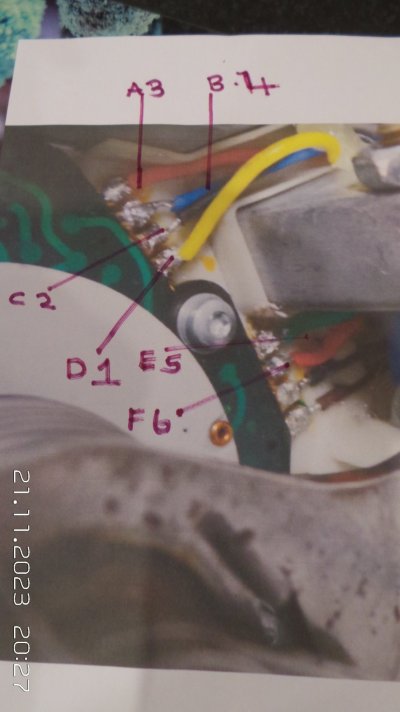

1994 Mercedes w124 m111 been rewiring the throttle body as the wires where totally shoot ,the insulation disappeared and shorting so much as it was hard to make a 100 % correct path for the new wires .Rewired it and it runs great but just for peice of mind does any one if the correct pin number to cable is right
pin 1 to D
pin 2 to C
pin 3 to A
Pin 4 to B
pin 5 to E
pin 6 to F this is the PIN number on the 8 pin connecter adjoining the loom


Attachments

  • 20231121_202723.JPG
    185.2 KB · Views: 11
