Vito / viano bench seat stays

cadmonkey

New Member
Joined
Feb 27, 2022
Messages
2
Location
Tiverton
Car
Viano
Hi. I have a viano with a rear bench seat that has a single seat by one side. I’ve noticed that one of the locator bolts / stays that lock the single seat to the double seems to be missing from the setup. There therefore is only one point of contact to the double seat at the rear (as well as the floor catches on the other side). Does any one know what these bolts are called and whether I can get a replacement? Thanks. Matt



BTB 500

MB Club Veteran
SUPPORTER
Joined
Aug 7, 2005
Messages
20,745
Location
Shropshire
Car
R129 SL500, W639 Vito 120, S205 C300
Hi & welcome.

Although the floor fittings are different I guess the 2+1 seat will be similar to the middle one our Vito?


If so the two fixings on the side of the double unit are a more complex shape than bolts ... your best bet would probably be a breakers. Worth trying a dealer though in case they do sell that part separately.

OP
OP
C

cadmonkey

New Member
Joined
Feb 27, 2022
Messages
2
Location
Tiverton
Car
Viano
Hi & welcome.

Although the floor fittings are different I guess the 2+1 seat will be similar to the middle one our Vito?

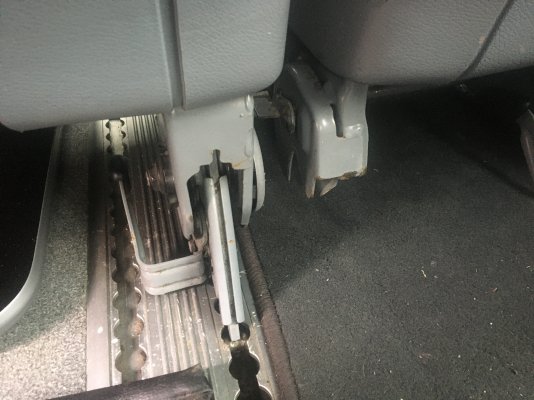

View attachment 124488

If so the two fixings on the side of the double unit are a more complex shape than bolts ... your best bet would probably be a breakers. Worth trying a dealer though in case they do sell that part separately.
Hi and thanks for the reply. I think your seats look a little different to mine, but you’re right it’s not just a ‘bolt’… I’m asking a dealer for the part, and will try a breaker. However I might end up needing to buy a second hand 2+1 bench seat as I’m not comfortable sitting someone in the existing seat without being fixed in four places.

Thanks for the advice.
Matt


BTB 500

MB Club Veteran
SUPPORTER
Joined
Aug 7, 2005
Messages
20,745
Location
Shropshire
Car
R129 SL500, W639 Vito 120, S205 C300
You're right ... not worth the risk of the seat coming loose in an accident. Good luck with getting it sorted!


m80

MB Enthusiast
Joined
Apr 26, 2015
Messages
4,193
Location
Derbyshire, High Peak
Car
Viano ex long, 651 2014. S211 646 2009 (till the Gov't drones blow 'em off the road)
Tbh I would check that the one you have will fit and work in the other position, then approach a machine shop to make a copy.
