Vito W638 110 cdi - where's the turbo?!

[nickjw2000]

Hi guys
I recently bought a 2001 Vito 110 cdi and it's suffering from the dreaded 'limited to 3000rpm' problem. Totally fine around town all day, but on the motorway for 5 mins and it's limited.
I got a new MAP sensor, but still got the problem.
So, I want to check the hoses to the turbo, but no idea where it is. Also where are the EGR valve and MAF sensor?
If anyone can post a few photos that show where to look it'd be very much appreciated.
Hope there's help somewhere on the forum.
Thanks



[StMarks]

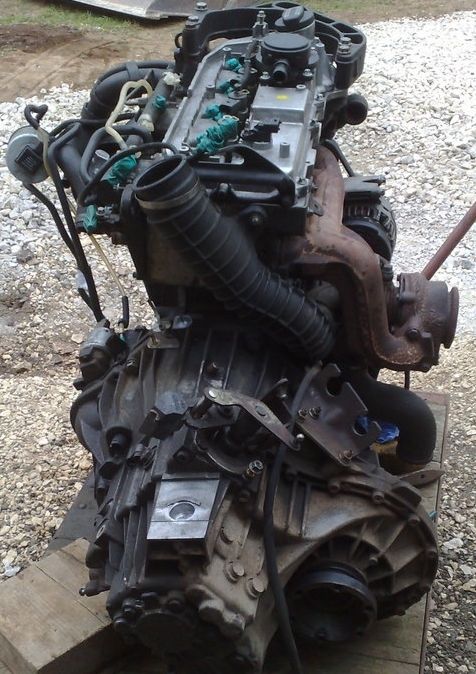

The turbo on the 110cdi is at the rear of the block, as you look in from the open bonnet.
It can be seen quite clearly on this picture I took of my own 110cdi engine, whilst I had it removed from my old van.
You can also see the turbo pipes quite clearly.
Hth.



[nickjw2000]

Cool, I'll have another look and see if can get to the hoses tomorrow. It's seems quite a tight squeeze under the bonnet. Thanks for the photo.
