Wanted SKU 71406 Adaptor for pressure check M103.

[optimusprime]

Size is M8 -1.0 This part screws in to the fuel distributor metering head .So i can check fuel pressure .With the help of fuel pressure kit .All the SKU ones i find are in Australia ...



[optimusprime]

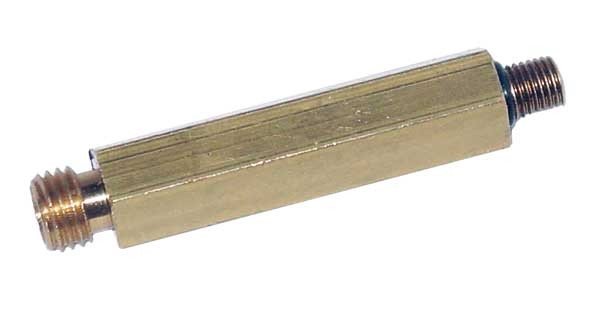

This is the adaptor i need to find .



[optimusprime]

Well as usual thanks ??/



[Will]

Have you looked on eBay/Amazon/etc?



[optimusprime]

Will thanks for coming back to me . I dont know what the adaptor is called . Also i dont know what presure tester i need .There might be an adaptor in the kit ,i dont know .



[Will]

There’s loads of sets on eBay, many look like they’re made in the same factory.

Now sure exactly what you’re looking for, but this might do the job?

Fuel Pump Pressure Tester Set Petrol & Diesel Combustion Gauge Meter 0-140 PSI | eBay

SATRA S-FP114 is petrol and diesel fuel pump pressure combustion tester set with comprehensive adaptors and fittings which are used for modern Schrader test port fuel injection systems. Includes bigger Schrader valve for diesel engines.

www.ebay.co.uk

More details on Amazon:

Satra Compression Truefer Pressure Tester Petrol Pressure Gauge Injector Tool : Amazon.de: Automotive

Satra Compression Truefer Pressure Tester Petrol Pressure Gauge Injector Tool : Amazon.de: Automotive

www.amazon.de

Description
Compression test pressure tester petrol pressure gauge injection system tool.


Petrol pressure tester with 0-10 bar (140PSI) pressure gauge.

Tight and control pressure testing of almost all injection systems from Bosch C.I.S Jetronic.

Adapter:

M10x1mm - M12x1.5 - M12x1.5mm & M14x1.5 - M8x1mm M12x1.5 - M8x1mm M12x1.5 - 7/16 - 20UNF - M10X1 - Adapter: 7/16 - 20 UNF - 7/16 - 20 UNF;M12x1.5 - 7/16 - 20 UNF;M12x1.25 - 7/16 - 20 UNF;M12x1.5 - M8X1mm

Accuracy of the measuring device is +- 2%



[optimusprime]

Will both will work but without this fitting its worthless .This adaptor is what i need . Any kit will work after ,.M8 1.0 X M12 1.50



[Will]

The kit says it has adaptors for those sizes? Have a read of the description on the Amazon link



[optimusprime]

Will that looks right .So i will go over now and order a kit Thank you Trev



[Will]

I’d say it’s likely that this kit has the same bits you need, but the description isn’t very detailed.

Universal Fuel Injection Gauge Pressure Tester Test Kit Car System Pump Tool 711005730730 | eBay

To use it on petrol engines you will have to use either the t-piece after the fuel filter or find a cap in the fuel that one of the adapters will fit. For petrol and low pressure diesel. 1x Diesel Pump Pressure Tester Set.

www.ebay.co.uk



[optimusprime]

Will, looks to me as if the adapter is not in that kit . I need to make up my mind just what to do .A kit i need will cost £50 on Ebay. And that is a good lump off the price of a pair of new fuel pumps . So i cant make up my mind . If i had known the numbers of the pumps .then i would have had a pair by now .Some say this number and some that ,,even Bosch gave me another number to make it more confusing .And because they wont get fitted untill next March they must be right .If not i will not be able to exchange them after .Even gave my vin number to all the parts shops to get the Bosch fuel pumps right .Thanks but i think it now up to me to make up my mind ..
