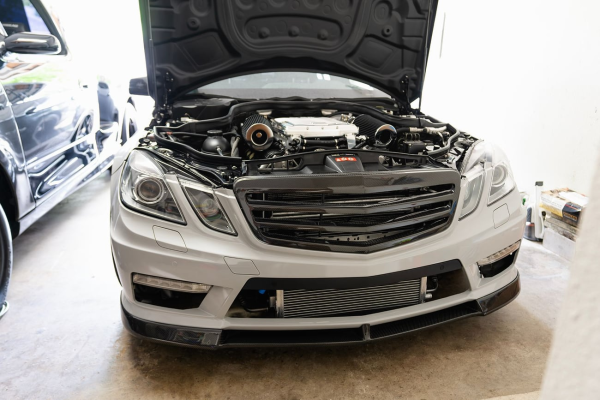

E63. M156 with Whipple Gen 5 3.0L blower.......

[ALFAitalia]

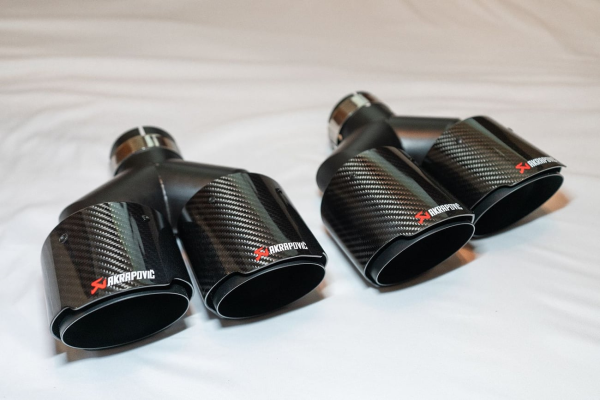

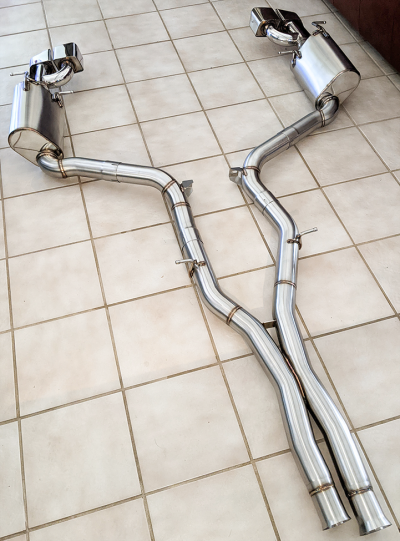

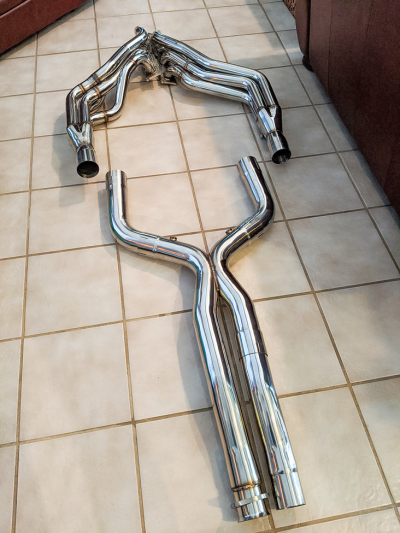

.......and 3 inch pipes with only one straight thru silencer per bank and 4 x 4 inch carbon tail pipes..Custom Race Camshafts, SLS Lifters, Adjuster Plates.........sounds like Satans own car! Stolen from a site over the pond I use....

To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

Accept third party cookies

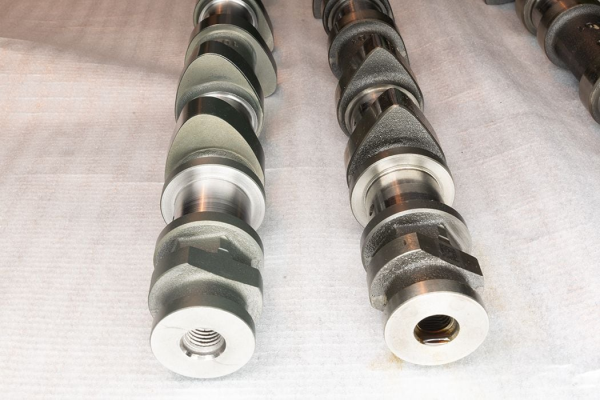

Side comparison between custom spec cams and factory camshafts.........yikes!













Looking at the street legal (just) drag radials its clear where it will be spending most of its spare time!!



[Skd884]

M156 weapon!



[Bellow]

Inducting air from the engine bay - amateurs.



[Steve84N]

Inducting air from the engine bay - amateurs.

That's what everyone says but when you're charge cooled then in the real world it doesn't really matter.



[Bellow]

That's what everyone says but when you're charge cooled then in the real world it doesn't really matter.

Nope. Power lost compressing hotter air. Power lost due to lower air density (charge cooling cannot compensate). Two hits. The first won't even be understood by them I'd wager.



[ALFAitalia]

Sort of correct....which is why he later changed it for this......but then discovered that when moving above about thirty the intake temps where the pretty much same. It only gets hot under the bonnet when not moving.....otherwise there is loads of cool air being forced in there. Its a bit a myth that under bonnet intakes affect power........ once moving.



[Bellow]

Where do you think the heat from the radiator and intercooler are going?



[ALFAitalia]

Being easily blown away by the 60 mph gale blowing though the grille.... !



[Steve84N]

Nope. Power lost compressing hotter air. Power lost due to lower air density (charge cooling cannot compensate). Two hits. The first won't even be understood by them I'd wager.

The supercharger makes the air hot whether it comes in cold or hot. The charge cooler then nets you a similar end result on the air going into the engine, as evidenced on the move. Doesn't really matter when you're standing still as you're not trying to make 700hp.



[Bobby Dazzler]

cams and factory camshafts.........yikes!

View attachment 152944

Cammy cams!



[alexanderfoti]

Sort of correct....which is why he later changed it for this......but then discovered that when moving above about thirty the intake temps where the pretty much same. It only gets hot under the bonnet when not moving.....otherwise there is loads of cool air being forced in there. Its a bit a myth that under bonnet intakes affect power........ once moving.

View attachment 152958

Yes Agreed 100%. I have tested a few cars during tuning, by placing air temp probes in the engine bay, or inside cone filters that are in the engine bay. Once above 20mph, temperatures at the air filter inlet equalled ambient air temperature. Some cars/platforms have restrictions in the OEM air inlet system (packaging reasons, NVH reasons etc) that mean a "hot air" intake is a worth some power at the higher RPMS. In my experience, the difference in the real world is negligable. Heat soak becomes a bigger issue at low speeds/extended idling though, only really noticed at the drag strip when staging!

Add onto that things that water/methanol injection, big charge air coolers, it becomes less of an issue, depending on what is doing the compressing!



[Bellow]

Yes Agreed 100%. I have tested a few cars during tuning, by placing air temp probes in the engine bay, or inside cone filters that are in the engine bay.

Which cars? What power outputs? Petrol or diesel?



[alexanderfoti]

I will collate a list for your perusal. From supercharged 4 pots, to twin turbo v12's and a few inbetween. Once you have test data for one chassis, you don't need to reapeat ad neasueam.
