Help needed - wiring diagram - r129 1994 280sl version 104.943

r129al

New Member
Joined
Mar 4, 2025
Messages
9
Location
DURHAM
Car
500SL
Hi does anyone possibly have a wiring diagram that covers coil wiring on a feb 1994 r129 with engine 104.93 - trying for hours on the net but struggling to find the 104.93 version

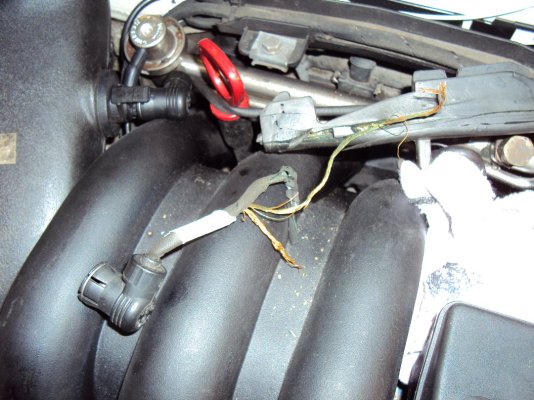

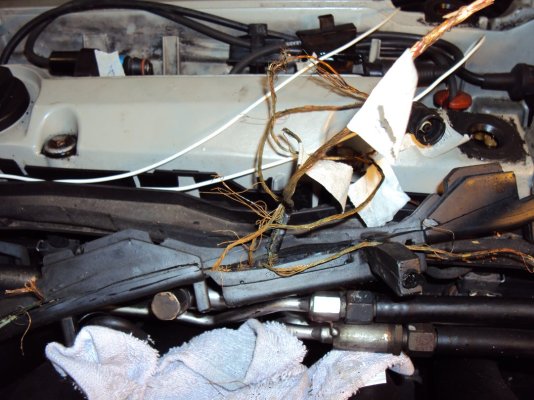

have rewired my degraded section of the loom to the coil packs - got all the wires ready just need the colours to match the good section as the "melt" out left no clues
pics attached

any help greatly appreciated as punch drunk searching google etc (old pc so cant view on the Mercedes ETM viewer )

many thanks

Alan


Attachments

  • DSC00328.JPG
    185.2 KB · Views: 2
  • DSC00326.JPG
    175.6 KB · Views: 2
  • DSC00325.JPG
    206.3 KB · Views: 2
