Dabthesaab
Active Member
Hi all.Anyone know if there is a 12v ignition on point i can tap into to power up my rear Dash cam? The car is the new type C Class 205.Many thanks to anyone that can help
power supply in boot c class
- Thread starter Dabthesaab
- Start date
- Joined
- Sep 27, 2016
- Messages
- 13,444
- Location
- UK
- Car
- Tesla Model S Performance, Model 3 LR, Model X /// Previous: 911, XFR, E320 CDI, C32 AMG, CLK 320
Are you sure there isn’t a power outlet in the boot?
brucemillar
MB Enthusiast
- Joined
- Nov 18, 2010
- Messages
- 8,663
- Car
- C55 AMG Wagon - W124 300te 4matic Wagon - BMW 4.8is X5 E53 - SWB Pajero 3.5 V6 24v
Hi
As above. first look and see if there is a 12v Cigarette lighter point in the boot. Failing that!! you should try and buy (Halfords sell them) a hard-wire dash cam kit. Ignore that, if you already have that kit for your camera. This will have a 'piggy back blade fuse adapter' (Maplins or Halfords sell the adapters on their own). Once you have this you can go into the 'Rear SAM' and find a switched live fuse, and piggy back off that. No mess, no soldering or crimping and it is safe and tidy.
For Dash Cams please be aware that many of these are 'noisy' and will cause interference (sometimes audible) in the car, depending on:
1) Which fuse/circuit you tap into.
2) Use of 'Ferric Beads' that come in hard wire kits or from Maplins)
3) Some camera's use 3vdc and require a specific hardwire kit, that includes a stepper.
Finally. Remember which circuit you tap into and what it does. Then when some days later, when you have forgotten all about wiring in your camera you get strange gremlins manifesting inside the car? You can move to another circuit/fuse, to see if that fixes the gremlin(s). Avoid any fuses that mention anything to do with, or are known to drive, any ECU functions.
As above. first look and see if there is a 12v Cigarette lighter point in the boot. Failing that!! you should try and buy (Halfords sell them) a hard-wire dash cam kit. Ignore that, if you already have that kit for your camera. This will have a 'piggy back blade fuse adapter' (Maplins or Halfords sell the adapters on their own). Once you have this you can go into the 'Rear SAM' and find a switched live fuse, and piggy back off that. No mess, no soldering or crimping and it is safe and tidy.
For Dash Cams please be aware that many of these are 'noisy' and will cause interference (sometimes audible) in the car, depending on:
1) Which fuse/circuit you tap into.
2) Use of 'Ferric Beads' that come in hard wire kits or from Maplins)
3) Some camera's use 3vdc and require a specific hardwire kit, that includes a stepper.
Finally. Remember which circuit you tap into and what it does. Then when some days later, when you have forgotten all about wiring in your camera you get strange gremlins manifesting inside the car? You can move to another circuit/fuse, to see if that fixes the gremlin(s). Avoid any fuses that mention anything to do with, or are known to drive, any ECU functions.
Dabthesaab
Active Member
My car is a prem plus with quite a few extras but no rear cig lighter or 12v point in boot,
Dabthesaab
Active Member
Thanks for info Brucemillar already got a dash cam and just ordered some piggyback connectors and a hard wire kit for it.Just one question regarding the rear SAM what is it and any idea where it is?
- Joined
- Sep 27, 2016
- Messages
- 13,444
- Location
- UK
- Car
- Tesla Model S Performance, Model 3 LR, Model X /// Previous: 911, XFR, E320 CDI, C32 AMG, CLK 320

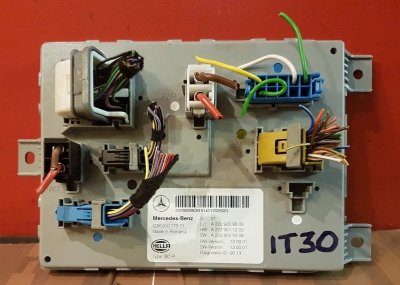

The rear sam is the rear ‘signal acquisition module’ in simple terms it controls everything electric in the back end of your vehicle, for example rear number plate lamps.
It’ll be behind the boot carpet, not sure which side, someone else should be able to advise.
brucemillar
MB Enthusiast
- Joined
- Nov 18, 2010
- Messages
- 8,663
- Car
- C55 AMG Wagon - W124 300te 4matic Wagon - BMW 4.8is X5 E53 - SWB Pajero 3.5 V6 24v
The rear SAM carries some blade fuses & relays and is a handy spot to piggy back onto (if you can) If you have a 'user manual' for the car? it should document the location under 'Fuses' but historically Mercedes position it on the LHS as you look into the rear of the car (I bet you It is now on the RHS). Just check again that have no rear ciggie lighter in the boot (LHS) under a flap of carpet or trim? I do not know your car, but MB often mount in the boot/luggage compartment.
grober
MB Master
A couple of pics of the front and rear of a W205 You can see the folded paper diagram on the side appearance will vary from mopel to model
Dabthesaab
Active Member
Abs fantastic info really grateful for the pics will have a good look during daylight
- Joined
- Sep 16, 2012
- Messages
- 2,021
- Location
- Winford Isle of Wight
- Car
- AMG Line Premier Plus Estate C220d
My 2015 premier plus S205 has a power point in the bootspace
It is on the right.
Just lift up the storage compartment (the one housing the black Poundland storage box!)
Dabthesaab
Active Member
Thanks for that Ioweddie mine is a 2015 prem plus and i will have a good look for the power point in my boot today
rf065
MB Enthusiast
- Joined
- Jun 8, 2007
- Messages
- 5,543
- Location
- Grossbritannien
- Car
- SLC300 - C250d Estate 4 Matic & Z900rs
Dabthesaab
Active Member
deffo no power point in the saloon will use the advice from you good guys and fit a PowerPoint somewhere in boot
- Joined
- Mar 22, 2017
- Messages
- 5,963
- Car
- GLB 220D 4Matic P+
I checked mine last night, there is no Power Point in the Boot,
I wonder if the Loom is there under the Boot Lining?
I wonder if the Loom is there under the Boot Lining? magpiemalemerc
Active Member
My 205 2016 estate has a 12v socket must be the estate model only maybe ?
