Glow plug relay

[Johanmoller]

Hello..have this code on my cdi200 n14/3 (glow plug output) no signal. What can be the problem? Regards Johan



[mushr00m]

from experience. The glow plugs are faulty. They have tripped the copper lines in the relay box for the CDI glow plugs. You will have to replace all glow plugs. Reason, well if one faulters then other may follow, so replace all plugs. Once done, saddly you will need to replace the relay box. Inside here, there are copper lines that act like a fuse box. Yes they can be repaired but not recommened. DO NOT buy 2nd hand.
Main advise, warm the engine up for 30 mins on tick over. With full access ready for glow plug removal. Use a torque bar and correct socket to unbolt/unscrew the glow plugs. Max torque to use is 30NM Most break around 35 to 40 NM. Max torque to insert new ones are normally written on the box. Denso upto 15NM. If at 30 you click bar but not break glow plug. Drop oil around the threads, run for another 10 mins. Then repeat unscrewing. Keep doing this till it comes out. I had this on a vito. Took 3 hours to do safely. Max torque i used was 40NM to remove glow plugs. That was squeeking BADLY!!!!. 1/2 turn out then 1/4 back. lept heating up the engine and dropping more oil. Kept doing this till the glow plug came out.

These are very easy to snap. Be ready to sweat alot. Dont worry, someone tried before on the vito van and broken one and left it in place. So I need to buy a reaming tool then i can replace the black relay box. Currently I can start van but a little lumpy due to running on 2 glow plugs from -10.. sucks..



[Johanmoller]

from experience. The glow plugs are faulty. They have tripped the copper lines in the relay box for the CDI glow plugs. You will have to replace all glow plugs. Reason, well if one faulters then other may follow, so replace all plugs. Once done, saddly you will need to replace the relay box. Inside here, there are copper lines that act like a fuse box. Yes they can be repaired but not recommened. DO NOT buy 2nd hand.
Main advise, warm the engine up for 30 mins on tick over. With full access ready for glow plug removal. Use a torque bar and correct socket to unbolt/unscrew the glow plugs. Max torque to use is 30NM Most break around 35 to 40 NM. Max torque to insert new ones are normally written on the box. Denso upto 15NM. If at 30 you click bar but not break glow plug. Drop oil around the threads, run for another 10 mins. Then repeat unscrewing. Keep doing this till it comes out. I had this on a vito. Took 3 hours to do safely. Max torque i used was 40NM to remove glow plugs. That was squeeking BADLY!!!!. 1/2 turn out then 1/4 back. lept heating up the engine and dropping more oil. Kept doing this till the glow plug came out.

These are very easy to snap. Be ready to sweat alot. Dont worry, someone tried before on the vito van and broken one and left it in place. So I need to buy a reaming tool then i can replace the black relay box. Currently I can start van but a little lumpy due to running on 2 glow plugs from -10.. sucks..

thanks for the tip.Johan



[mushr00m]

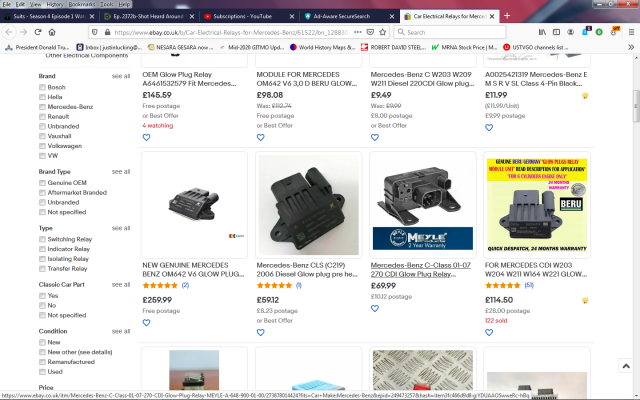

here is a picture of a vito version relay for glow plugs. Not the same but very similar. you should have something like this. However please consult a specalist for a precise diagnosis. Ask them how much, then walk away and think about it. Also double check your electric cables to and from the glow plug for wire chaffing



[OneForTheRoad]

One or possibly more glow plugs have blown and taken the relay with it. Its best to change all 4 along with the relay. Look for a beru controller.
