ML270 CDI+ Project Build

[91dm]

Hello,

I couldn't decide whether or not to start a project thread for this, it's not something I've done before but I think this should be something a bit different for the forum.

Here's the project car, a 2004 ML270 CDI Special Edition that I purchased over four years ago. The jeep has retired from everyday use and I can't seem to part with it.

Here's a picture from the advert when I purchased the car, looking noticeably cleaner!



Apart from general maintenance I haven't modified much, over time I fitted a Alpine double din headunit, a tuning box and some bigger tyres! The jeep has been used for pretty much everything and I can't fault it, it has never failed to get me home!

Taken not long after purchasing:


Hard at work:


The plans:
I'm not completely sure where the project will go, I've a hundred different plans which will hopefully happen over a long time but who knows, diesels may be banned from the road before it's finished! I have a bigger turbo, injectors, pump and more ready to go but there's some maintenance items required first of all. The aim would be to have something close to the AMG version in terms of numbers!

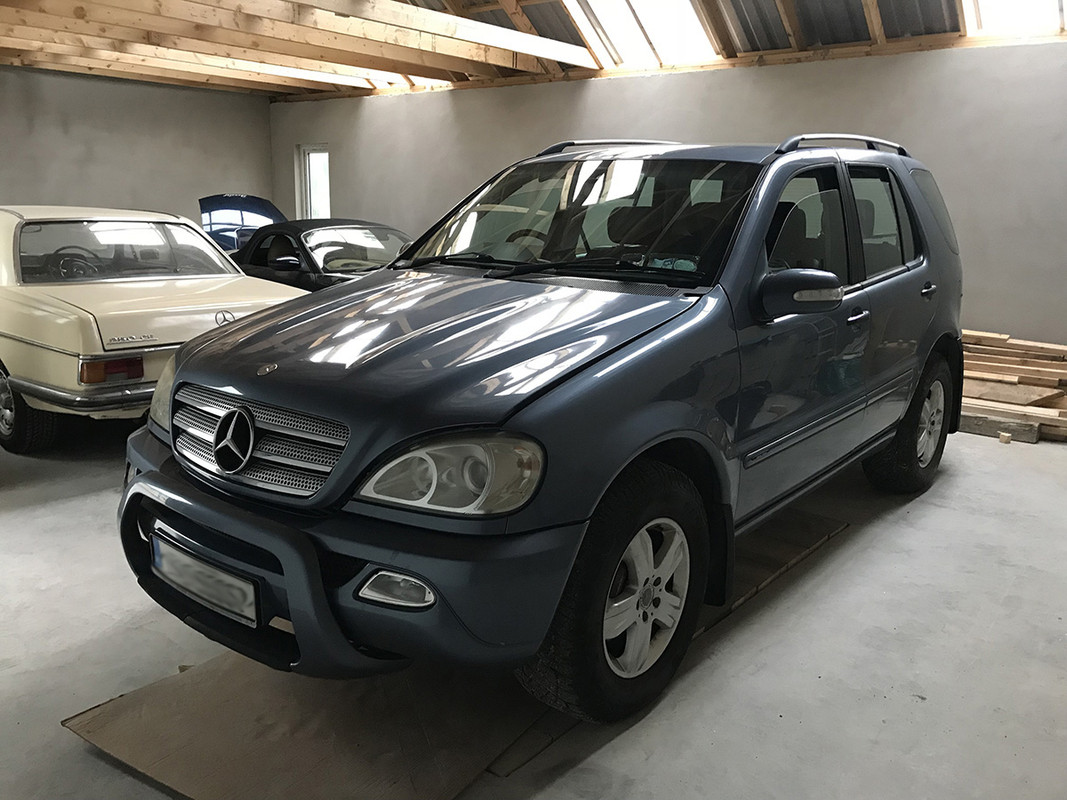

So this is the starting point, taken a week ago.


Stay tuned!



[91dm]

I got chance this week to test fit the CP3 pump onto a spare OM611 engine to see what I was facing.



As you can see, it's considerably larger than the standard pump. A few clearance issues and it will require a new hole to be drilled into the head.



I've a few bits to track down and order to make pipe work etc fit, this was the first step of a long process I feel!



[91dm]

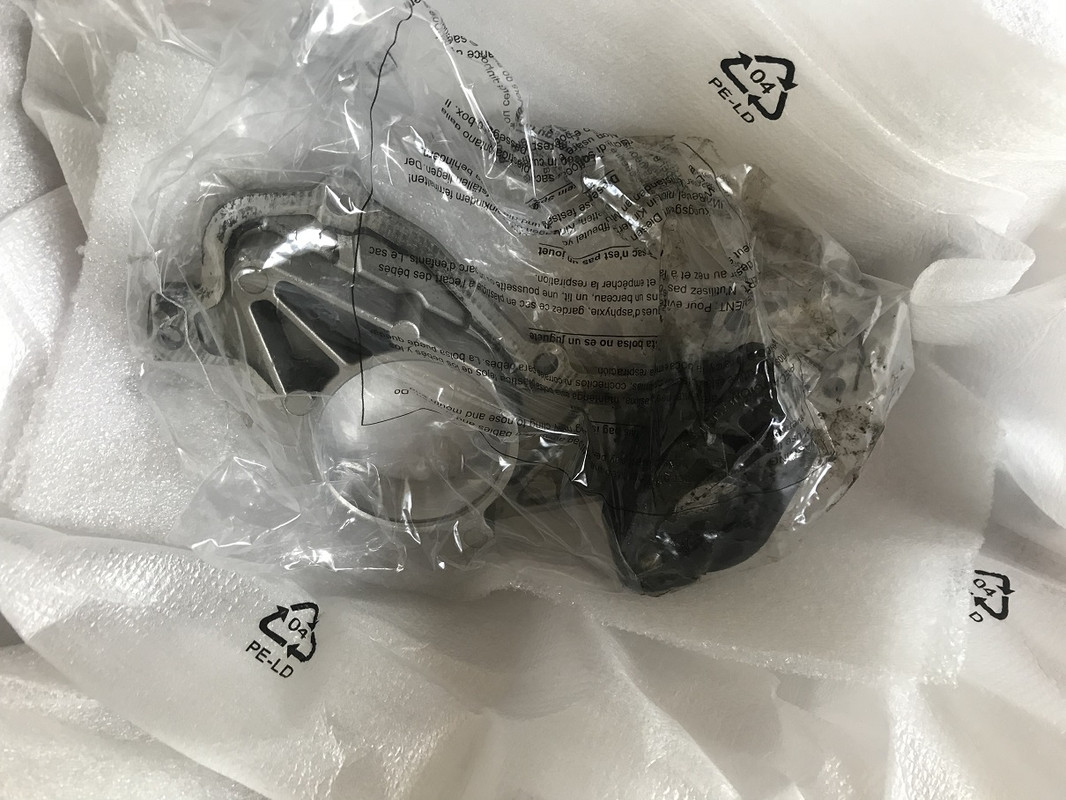

Another part of the jig saw came from Germany to blank off the feed pump.

I've been trying to research if the ML55 final drives/ratios are the same as a ML270 if anyone knows?



[Steven Stoole]

Keep us updated Ihave the ML500 but looking forward to seeing what you do to it. Love these cars



[91dm]

I've had to put this on hold for a while until I finish a new garage build but should make the project easier in the long run! I've all the bits gathered now; AMG spec turbo and injectors and V8 injector pump!

Washed up for the winter



[91dm]

With all this spare time now at home, I managed to make great progress in the new garage last week. Getting walls and floors painted, some shelves up and tools out. Still lots more to do but a great start!



Decided to pull the ML to clean the interior as I'd seen some mold starting. I'm no detailer but it does clean up very well for its age and miles.





It didn't take too long so managed to fix the rear wiper, not sure if it was the relay or an exposed wire but it's back working again, so one thing off the long list. Engine plans will mostly likely happen later in the year now but lots to do otherwise.



Thanks!



[ton377]

Having just bought a brabus d4 I'm looking forward to seeing how your getting on with your project.



[91dm]

Well after getting distracted with another project I finally started to make some progress on the ML. I'm going to hold off on the mechanical stuff until Christmas so I can keep working on it rather than evenings and weekends. For now I thought I would start on the clean up underneath as it hasn't been touched for a couple of years. I hope that it's solid and it's just the surface but time will tell. I was looking out for a very clean late black special edition ML but they seem to be hard to find so I will carry on with this!

Got distracted on this during lockdown, at least it's ready for the summer!



Bumper off to start the inspection!



Rust!



Looking better already, some dodgy parking sensors that I need to replace.



Good wash to prep for wire brushing. Degreaser worked well, a hot washer would have been a big help.



Probably take it in sections starting with the rear chassis section and boot floor! Currently applied rust killer to the rear panel sections, will paint black and then possibly waxoyl the lot.



[merc85]

Great Project, Love the Garage too!



[91dm]

I finally finished another project and made space in the corner to move the ML into so that it's not blocking anything.

The inlet manifold has been leaking for along time, I knew it would be a pain to do so was putting it off, it's the first job on the list. I bought the kit off eBay to blank the swirls, wish I had bought a new inlet but I might in the future. It's near impossible to get all the black carbon off, especially on the inside. Some new manifold seals to go on as well.





Everything that touched the inlet or block was destroyed with black sludge, be prepared with lots of gloves if you attack this. I can't believe how much has to be removed to get access, it's a full strip down.

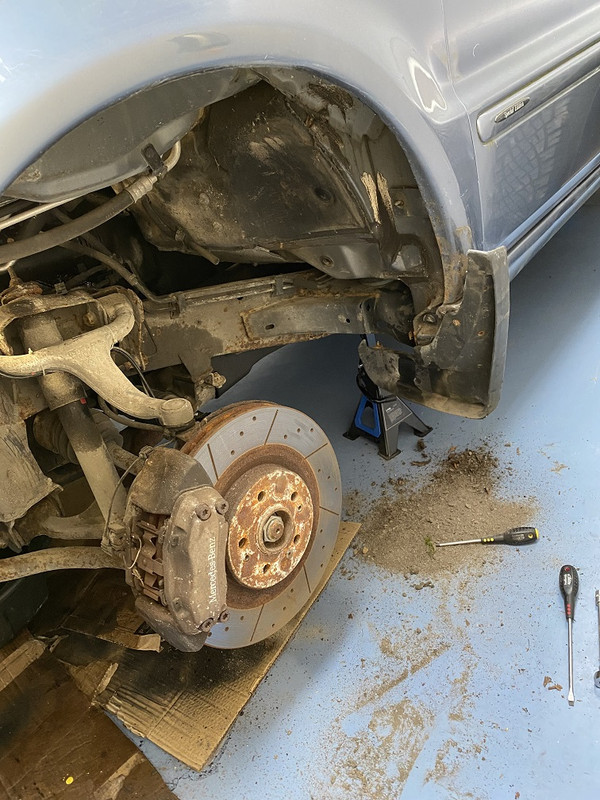

No wonder arches rust, lots of muck hidden behind shield and mud flaps. Wire on the starter means wheel off.





I put the whole manifold into a bath of degreaser and left it to soak. Not many pictures as I was trying to keep things clean which turned out to be impossible.



Some swirl flaps are not the original size, eaten by the engine at some stage.





Almost finished, just the rail and a few bits to put back on. Not a job I'd like to do often, made worse by the fact I left it so long. Going to tap the EGR for a boost gauge while all is off.

Thanks for reading!



[91dm]

All back together, just a new diesel filter to fit and intercooler pipe. I've added a fitting for the boost gauge, just need to find a spot on the bulkhead to get the hose and egt wires through. The fuse boxe looks like the best bet.

Quick test drive and then turbo off next ready for the hybrid.



[91dm]

Finally all back together and checked over for the first start, all went ok with no leaks! It's definitely happier ticking over now and sounds smoother, less boost/air noises going on.

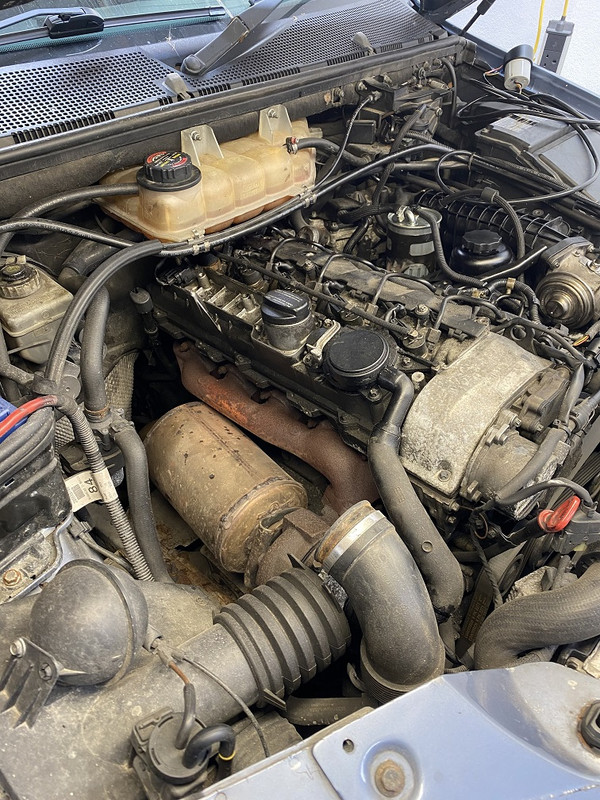

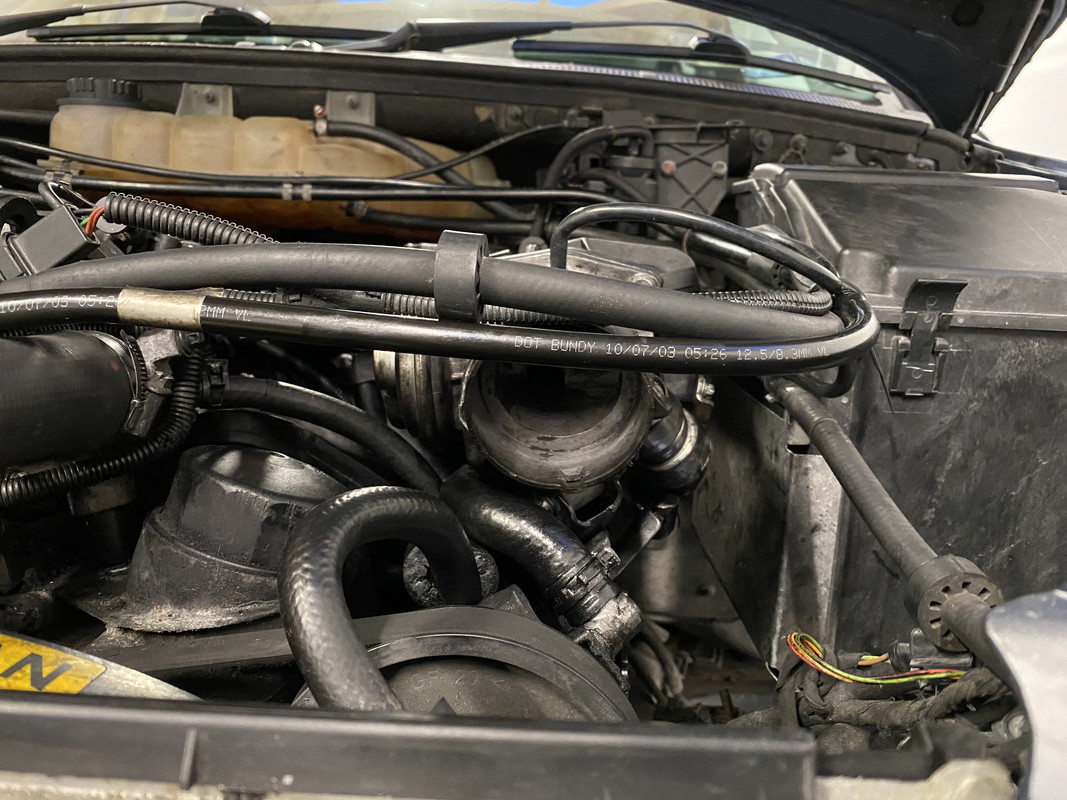

I've moved onto the other side and have stripped most of the air box etc down and left the bolts soaking. Found a broken inlet pipe and exhaust clamp, so a few bits to go shopping for.

I need to find an upgrade for the intercooler and simplify the hoses. I'm trying to work out what sensors I can remove without bringing on the engine light which is hard when you can't start the jeep! It looks like i'll have to move the cooler forward to fit in a bigger intercooler.

To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

Accept third party cookies

After these phase I'm going to get it outside and give the engine bay/front a good degrease and wash.



[91dm]

The job for today was to get the turbo off and tap the manifold for a EGT gauge.



Access is good with the wheel off, lots of room to access the turbo/manifold etc.



One manifold stud broke on me but I'm blaming the previous owner, that port was blacker than the rest so I suspect it was leaking? All sorted now, it came out relatively easily and I stole another stud from the 220.



All off and taken apart, small bit of damage to the exhaust wheel however very little play/wear for 175k, I assume it's the original.

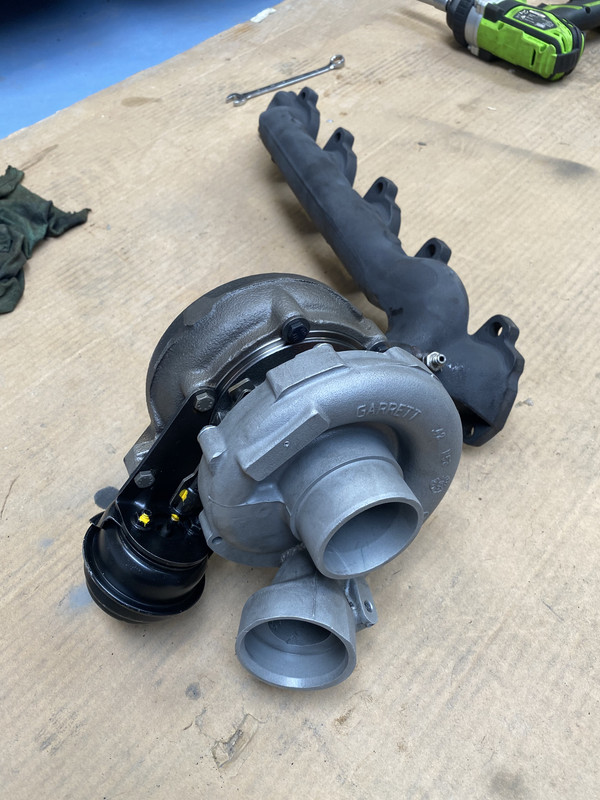

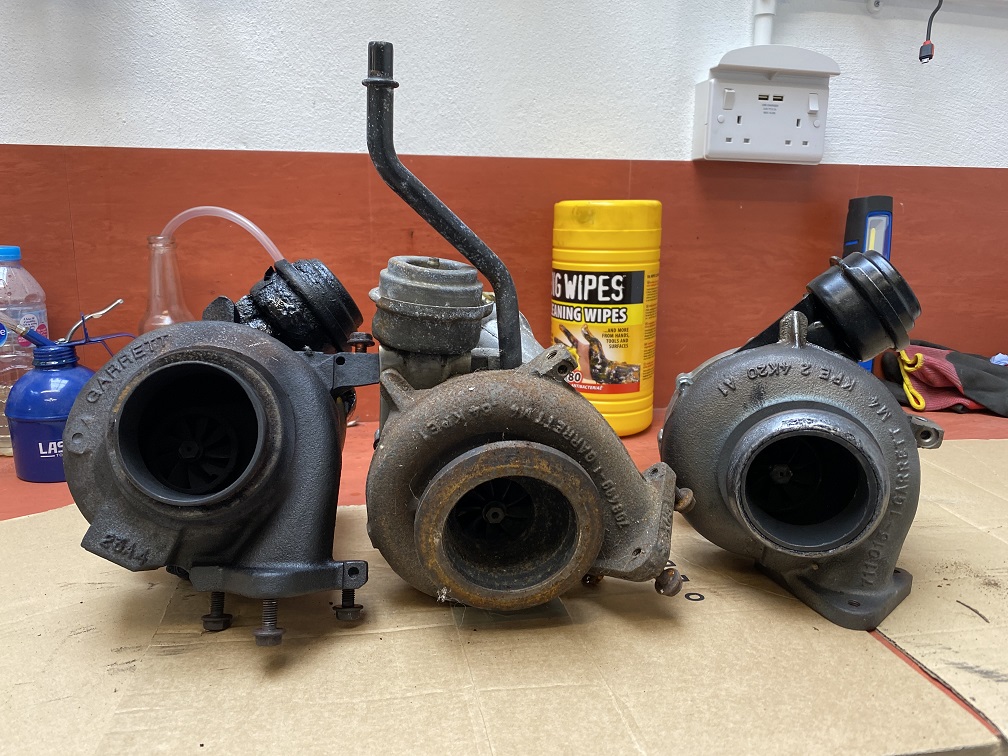

Comparison of the original GT22v - GT23v and GT23v hybrid. The compressor inducer is approximately 20% bigger than standard so hoping for good gains. The difference in size doesn't really show on the picture, it's noticeably bigger than the original.
