Problem W124 M103 .Will only run if pumps are primed .And stpps

[carat 3.6]

There is, but they require mods to fit.

The diesel version is a direct fit, but the gauze size is larger to suit the thicker fuel.

There is the version from the earlier cars that uses a slightly smaller fuel feed pipe, just needs the hose down to the pumps swapping with it.



[optimusprime]

carat 3.6 Must gio i ..need to get the tea fior the wife insid haha have a good night. could do with a good check to see if the part number is right one.



[Deadly Dave]

I had a similar problem with my 300CE. The cause was these hoses were cracked

Genuine MERCEDES W124 190e M103 Air Intake Pipe Idle Hose X1 1030941382 OEM | eBay

Genuine MERCEDES W124 190e M103 Air Intake Pipe Idle Hose X1 1030941382 OEM | Vehicle Parts & Accessories, Car Parts & Accessories, Air & Fuel Delivery | eBay!

www.ebay.ie



[optimusprime]

Dave Thanks i will takea look at them ..Can you expain your proble to me ?



[Deadly Dave]

My car would start but would cut out when I tried to drive. It would then take a while to start again and cut out when driven again.



[optimusprime]

Dave ..Could you hear the fuel pumps running after your engine stoped ?



[optimusprime]

carat 3.6 .Just might have found a little more info ...My car was made March 1989 so looking on this site it was a Japan made mercedes . Look at this pat number FUEL TANK WITH ATTACHMENT PARTS MERCEDES 260 E (124026)​



[Will]

Trevor, you’re overthinking this. Just get the tank drained down and have a look at the strainer. If it’s dirty/blocked it will need cleaning (along with the tank too really)

No need to spend weeks researching the part IMHO

The one I linked to from SL shop looked like it would fit though, if you really want a brand new one.

Are you selling the car or keeping it?



[optimusprime]

Well i am 80 and things are getting out of my reach .So yes , sometime this year it will be going . But i said this for the last 2 years --who knows .I had the idear to do just as you said, and just replace the hose to the strainer . The guy who came to replace the fuel pumps said, he was afraid to clamp the hose because it looked fragile ,so he plugged it . .And he may have clamped the hose to stop the fuel exiting the tank...i dont know for sure how he did this .But the hoes must be poor .condition now . And to clean the filter, i think it would be best to replace the hose to strainer.



[ray_hennig]

you can wash them out

Yes you can. We changed mine last year with the entire pump pack. But I cleaned up the 33 year old original and it looks almowt like new. I think I used brake cleaner.

RayH



[optimusprime]

Ray will do my friend clean it i will ...haveing problem now finding a new hose from the strainerto pum , i might be toast , so at the moment i am on the seartch for one of them



[Pontoneer]

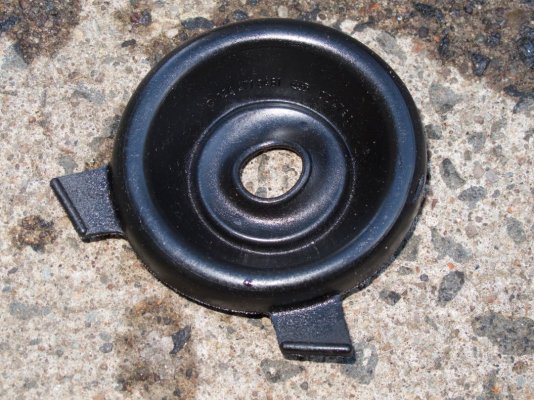

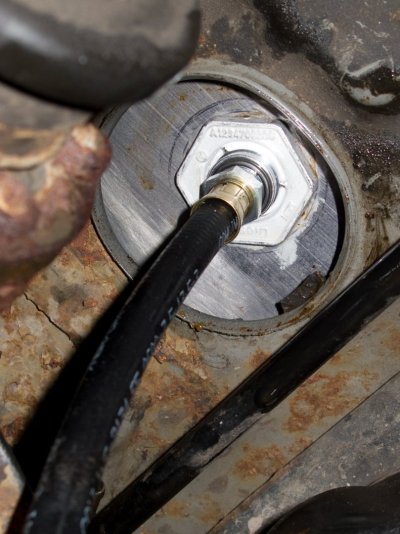

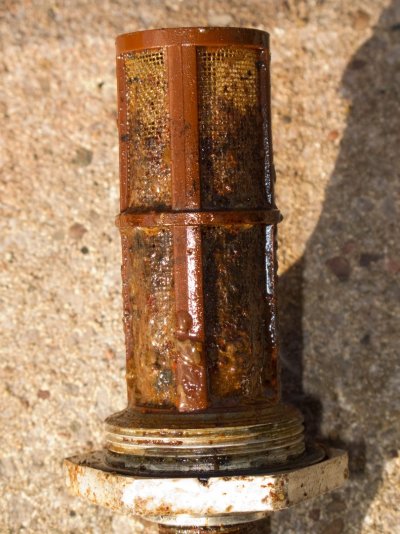

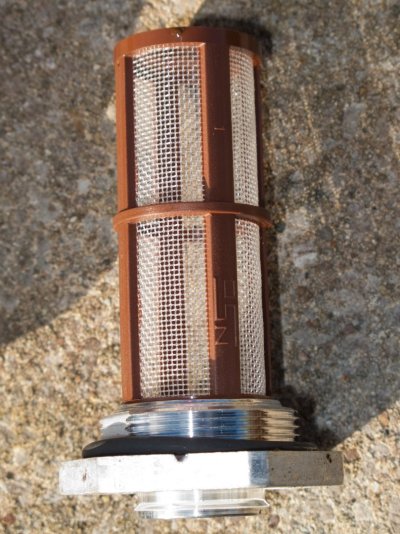

Here are some pics from when I changed the strainer in my W124 E250D , this was the late reg Indian assembled car that I acquired .

I removed some photos as they were near duplicates of others , Please note that my strainer , while for a Diesel car , had a 123 part number , and this was the one supplied against the chassis number by M-B Glasgow . It may be worth calling around a few dealers , especially those specialising in Classic Cars , like M-B Poole , to see if they have any in stock .

I had to buy the large socket from my local Halfords to get the strainer out , and fit the new one , it was , from memory , something like 45mm . I loaned it to a friend to do the same job and never got it back , same with numerous other tools , so I no longer lend to him .



[Will]

To be fair Derek I think even that one would have cleaned up too?



[Pontoneer]

Ray will do my friend clean it i will ...haveing problem now finding a new hose from the strainerto pum , i might be toast , so at the moment i am on the seartch for one of them

Maybe if you can get the hose union to unscrew from the old tank strainer , you could take the old hose to a hydraulic shop and get them to fit a length of new hose onto the existing union ? Or if you're going to clean the old strainer , you could just take it in still together and just get a new length of hose put on ? You can see from my photo it only needs to be about a foot long .



[Pontoneer]

To be fair Derek I think even that one would have cleaned up too?

Quite possibly , but that was about 10 years ago and the parts were readily available then ; I can't recall what I paid , but I don't think it was all that much .

That car had lain about a year before I got it , and had caught the Diesel bug !

I stuffed the nozzle of a steam cleaner into the tank strainer hole and gave it a blast through , then filled full of fresh Diesel , no further problems .



[optimusprime]

Here are some pics from when I changed the strainer in my W124 E250D , this was the late reg Indian assembled car that I acquired .

I removed some photos as they were near duplicates of others , Please note that my strainer , while for a Diesel car , had a 123 part number , and this was the one supplied against the chassis number by M-B Glasgow . It may be worth calling around a few dealers , especially those specialising in Classic Cars , like M-B Poole , to see if they have any in stock .

I had to buy the large socket from my local Halfords to get the strainer out , and fit the new one , it was , from memory , something like 45mm . I loaned it to a friend to do the same job and never got it back , same with numerous other tools , so I no longer lend to him .

View attachment 170484View attachment 170485View attachment 170486View attachment 170487View attachment 170488View attachment 170489View attachment 170490View attachment 170491View attachment 170492View attachment 170493View attachment 170494View attachment 170495View attachment 170496View attachment 170497View attachment 170498

Good job Eric ..wish i coould get my car up on ramps ..did you find it difficult to reach up to do it ..i will look in to the information you laft for me .. i am sure i have a stubby socket .I purchased one to change the sender unit in the tank it migh be the same size have a good GOOD EASTER all of you Trev



[Pontoneer]

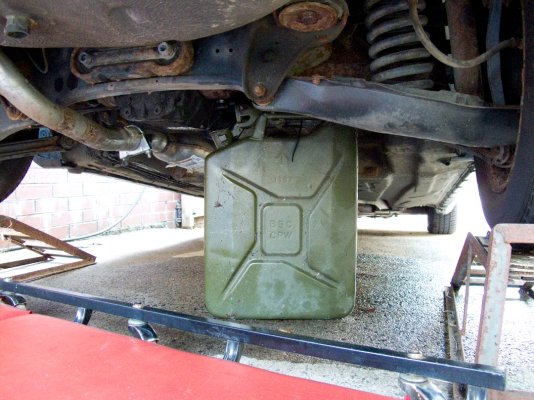

It was quite easy to reverse up onto those ramps , and chock the front wheels ( since replaced with new ones where the platform can be further raised by a hydraulic bottle jack underneath , then lock pins inserted ) , even those ones left me plenty room to get my jerrycan under the strainer , and pop the disconnected hose in to drain the last of the fuel ) .

While I was then in my late 50s , I found it easy enough to roll under on my car creeper and the underside was just at a comfortable height to work in there .

Happy Easter to you too !



[optimusprime]

Thank you ..jut gone 80 last month haha



[Pontoneer]

Since I was sold a strainer with a 123 part number , I looked up the EPC for a strainer for a W123 280E , which is about the closest model in that range to a 260E , and it came back with A 201 470 04 06 , which is one digit away from the number you have , also the seal ring , which is a separate part , A 110 997 01 45 .

The above items on this page

FG 123.033 - FUEL TANK WITH ATTACHMENT PARTS > EPC Online > WebAutoCats.com

Mercedes parts catalog. FUEL TANK WITH ATTACHMENT PARTS. Spare parts catalog EPC Online.

webautocats.com

For the hose , it is on the page below , but is A 123 470 08 75 ; this is the hose from the tank strainer to what they call the damper cage , but looks roughly equivalent .

FG 123.033 - FUEL LINES > EPC Online > WebAutoCats.com

Mercedes parts catalog. FUEL LINES. Spare parts catalog EPC Online.

webautocats.com

These items may not be available either , but no harm in looking . Sometimes you need to look outside the box !



[optimusprime]

Thanks fot this info going through it now .
